Fixed Ladder Design Requirements in Ontario: Dimensions, Standards, and Compliance Guide

Fixed access ladders are widely used across industrial and commercial facilities in Ontario — but many are improperly designed, installed, or modified.

Non-compliant ladders are one of the most common deficiencies identified during inspections, often requiring retrofit or replacement to meet safety requirements.

This guide outlines the key design requirements for fixed ladders in Ontario, including dimensions, fall protection, and engineering considerations.

Start with the full system overview:

Fall Protection Systems Ontario – Complete Guide

What Governs Fixed Ladder Design in Ontario?

Fixed ladder design is guided by a combination of regulatory and technical documents, including:

• Ontario Regulation 851 – Industrial Establishments
• MOL Engineering Data Sheet 2-04 (Fixed Access Ladders)
• Ontario Building Code (OBC)
• CSA fall protection standards (where applicable)

These references establish requirements for geometry, structural attachment, and safety features.

Key Fixed Ladder Design Requirements

Rung Spacing and Width

• Uniform rung spacing is required
• Spacing must allow safe climbing without overreaching
• Rungs must be slip-resistant and structurally adequate

Side Rails

• Must provide adequate strength and rigidity
• Must be continuous and properly supported
• Must be securely attached to structure

Clearances

• Sufficient clearance behind the ladder is required
• Clearance must allow safe climbing motion
• Obstructions must be avoided

Landing and Step-Off

• Safe transition at top and bottom is required
• Step-off platforms must be stable and secure
• Guarding may be required at openings

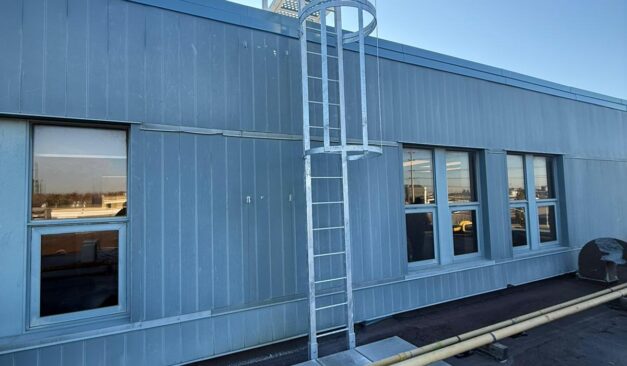

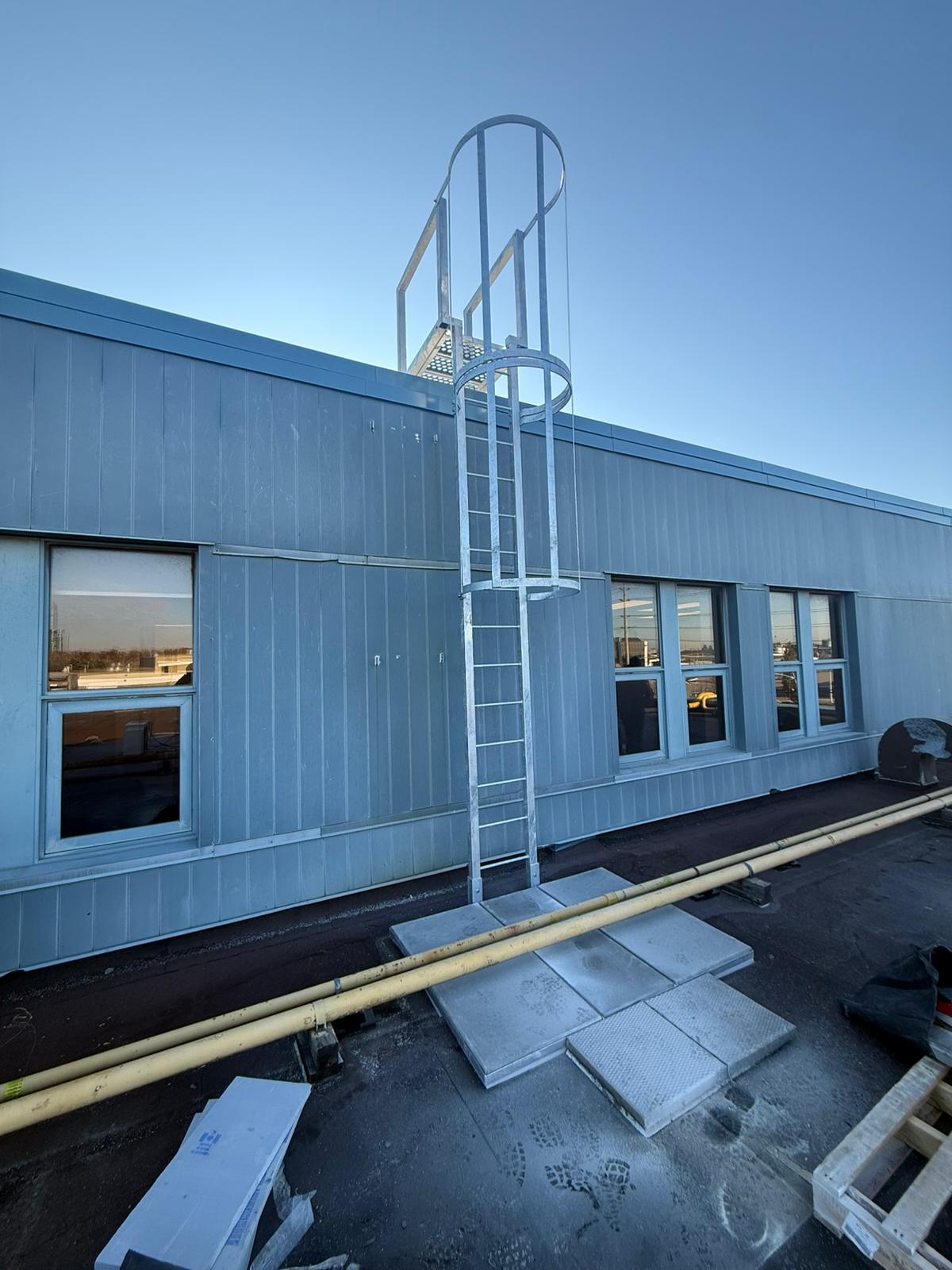

When Are Ladder Cages Required?

Ladder cages are traditionally used for fall protection on taller ladders.

Typical considerations include:

• Ladders exceeding certain heights
• Vertical access in industrial environments
• Protection from backward falls

However, there is increasing use of alternative systems such as vertical lifelines or rigid rail systems.

Vertical Lifelines and Rigid Rail Systems

Modern ladder systems often incorporate:

• Vertical lifeline systems
• Rigid rail (glide lock) systems

These systems provide improved fall protection compared to cages and are commonly used in new installations.

Structural Attachment Requirements

Ladders must be securely attached to the supporting structure.

• Proper anchorage design is required
• Fasteners must be adequate for loads
• Attachment points must be verified

Improper attachment is a common failure point in older ladder systems.

When Is Engineering Required?

Engineering review is required when:

• New ladders are installed
• Existing ladders are modified
• Structural adequacy must be verified
• Fall protection systems are added

A Professional Engineer ensures compliance with applicable standards and safe design.

Relationship to Ladder Inspections

Design deficiencies are often identified during inspections.

See:

Ladder Inspections Ontario

Common Design Deficiencies

• Incorrect rung spacing
• Insufficient clearance
• Improper ladder height without rest platforms
• Inadequate structural attachment
• Missing or incorrect fall protection systems

Fixed Ladder Design and Retrofit Services

HITE Engineering provides:

• Fixed ladder design
• Retrofit and upgrade solutions
• Engineering drawings and certification
• Fall protection integration

When Should You Upgrade or Replace a Ladder?

• When ladders do not meet current standards
• When damage or corrosion is present
• When access conditions change
• When inspections identify safety concerns

Book a Ladder Design Review

Contact HITE Engineering
to review or design your ladder systems.
